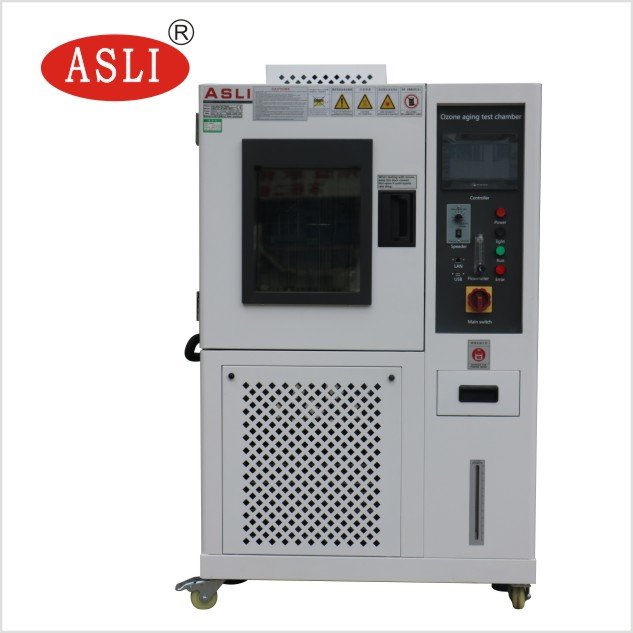

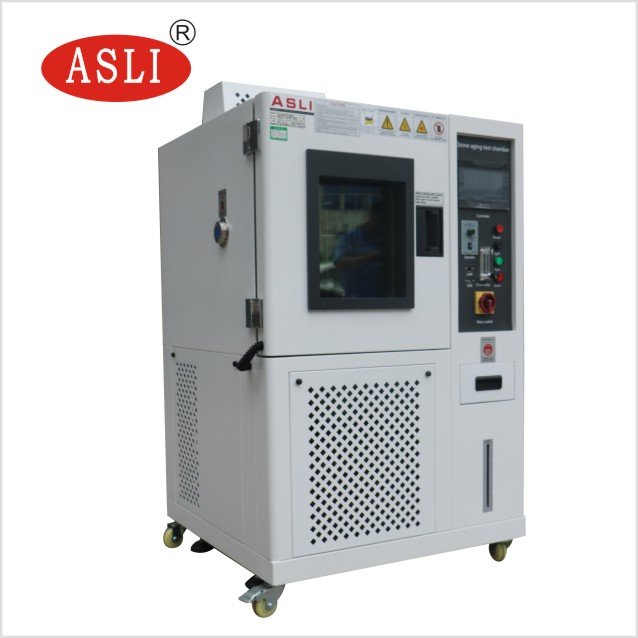

The Ozone Aging Test Chamber is designed to simulate an ozone-rich environment to test the ozone resistance and crack-resistance properties of rubber and similar materials. This machine enables precise control and adjustment of ozone concentrations, allowing for the evaluation of specimens' performance under different ozone exposure conditions. It meets various international standards, including JIS K6259, ASTM D1149, ISO 1431, GB/T 13642, and GB/T 16262.
Durable Stainless Steel Construction: Both the interior and exterior are made from high-quality stainless steel, ensuring durability and resistance to ozone degradation.
Powder-Coated Iron Exterior: The outer casing is made from iron with a powder coating, offering protection against wear and corrosion.
Efficient Ozone Generator: Equipped with a durable ozone generator that provides consistent ozone production for testing.
Insulation with High-Density Glass Fiber Cotton: Ensures excellent thermal insulation and energy efficiency.
Universal Wheels & Fixed Foot: The chamber features universal wheels for easy movement and fixed feet for stability during testing.
Multilayer Steel-Glass Window: The observation window features a multilayer steel-glass construction with an internal conductive chip for safety and visibility during testing.
For more information or to request a quote, please contact us at:
Model | OA-80 | OA-408 | OA-800 |
Internal Dimensions WxHxD (mm) | 400x500x400 | 600x850x800 | 1000x1000x800 |
Internal Dimensions WxHxD (mm) | 950x1650x950 | 1200x1950x1350 | 1600x2000x1450 |
Temperature Range | RT+10℃~+65℃ | ||
Control Accuracy of Temperature | ±0.5℃ | ||
Distribution Uniformity of Temperature | ±2.0℃ | ||
Analytic Accuracy of temperature | 0.1℃ | ||
Ozone Concentration (pphm) | 1~1000, adjustable | ||
Deviation of Ozone Concentration | ≤10% | ||
Ozone Generator | Silent discharge tube type | ||
Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||
Insulation Material | Polyurethane rigid foam / superfine glass fiber cotton | ||
Security | Leakage, short circuit, over-current protection | ||
Power | AC 220V | ||
